Model No: HJGB-07
Regular raised standard expanded metal mesh 3/4#9 1/2#13
Item: standard expanded metal
Specification:1/4#18, 1/2#13, 3/4#9, 1-1/2#16, 1#9 ...
Size: 1000x2000mm or 1200x2400mm
Material: carbon, SS, aluminum, galvanized.
Application: industry
Specification:1/4#18, 1/2#13, 3/4#9, 1-1/2#16, 1#9 ...
Size: 1000x2000mm or 1200x2400mm
Material: carbon, SS, aluminum, galvanized.
Application: industry
Product Description
Description of Standard Expanded Metal
Standard Expanded Metal, also called raised expanded metal mesh or regular expanded metal, has a raised surface around the diamond-shaped openings. This raised surface is created during the production process of slitting and stretching the metal sheet. As a result, the sheet becomes more rigid, and the surface feels rough to the touch. This type of expanded metal is well-suited for industrial uses where sheet strength is crucial, and direct public contact is minimal.

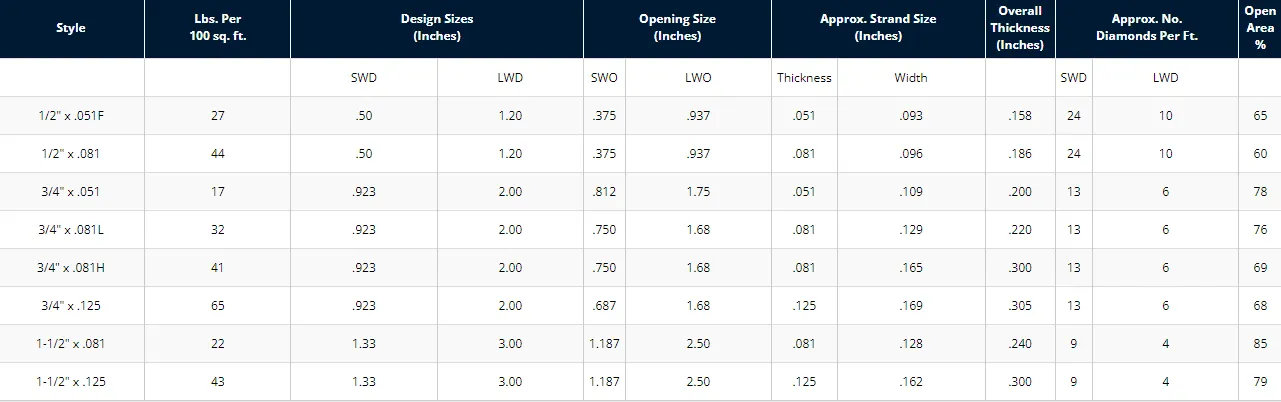

Materials and Specifications of Raised Expanded Metal Mesh
The materials of regualr expanded metal is available in carbon steel, aluminum, stainless steel 304, stainless steel 316, galvanized.
Carbon Steel Regular/Standard/Raised Expanded Metal
Stainless steel 304/316 Regular/Standard/Raised Expanded Metal
Aluminum Regular/Standard/Raised Expanded Metal
Applications of Regular/Standard/Raised Expanded Metal
There are countless applications for standard expanded metal. Since it is versatile, economical, and easy to install it is an ideal choice for many of these applications:
- Expanded metal guards
- Expanded metal fencing
- Expanded metal panels
- Expanded metal grating
- Expanded metal grilles
- Expanded metal screens
- Expanded metal greenhouses
- Expanded metal walkways
- Expanded metal infill panels
3/4″#9 Raised Expanded Metal

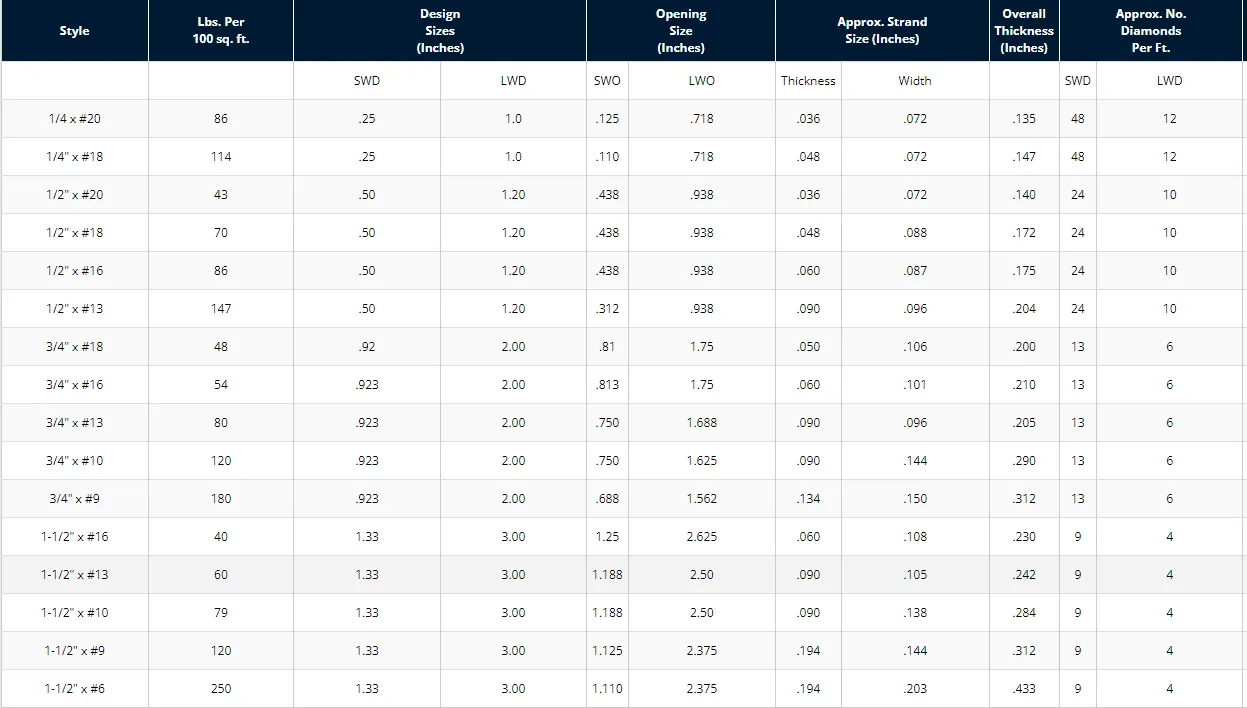

Below are the Specifications of 3 4 9 raised expanded metal:
- Diamond Opening (short width):3/4″
- Thickness:9 gauge
- Flat or Raised:Raised
Please contact us for more details and competitive price.
