Steel galvanized aluminum ladder rungs 2 rows, 3 rows, 4 rows

- Speficition: 2 rows, 3 rows, 4 rows
- Length: 48'', 48.75'', 60'' or customized
- Material: steel, aluminum, galvanzied
-Thickness: 11ga, 13ga, 16ga, .125''
-Style: traction tread
-Packing: by pallet

♥

Product Description

Specifications of steel ladder rung

Stock size: 48”, 48-3/4”, 60” length

Material: steel, galvanzied, aluminum ,stainless steel

Thickness: 11ga, 13ga, 16ga, .125”

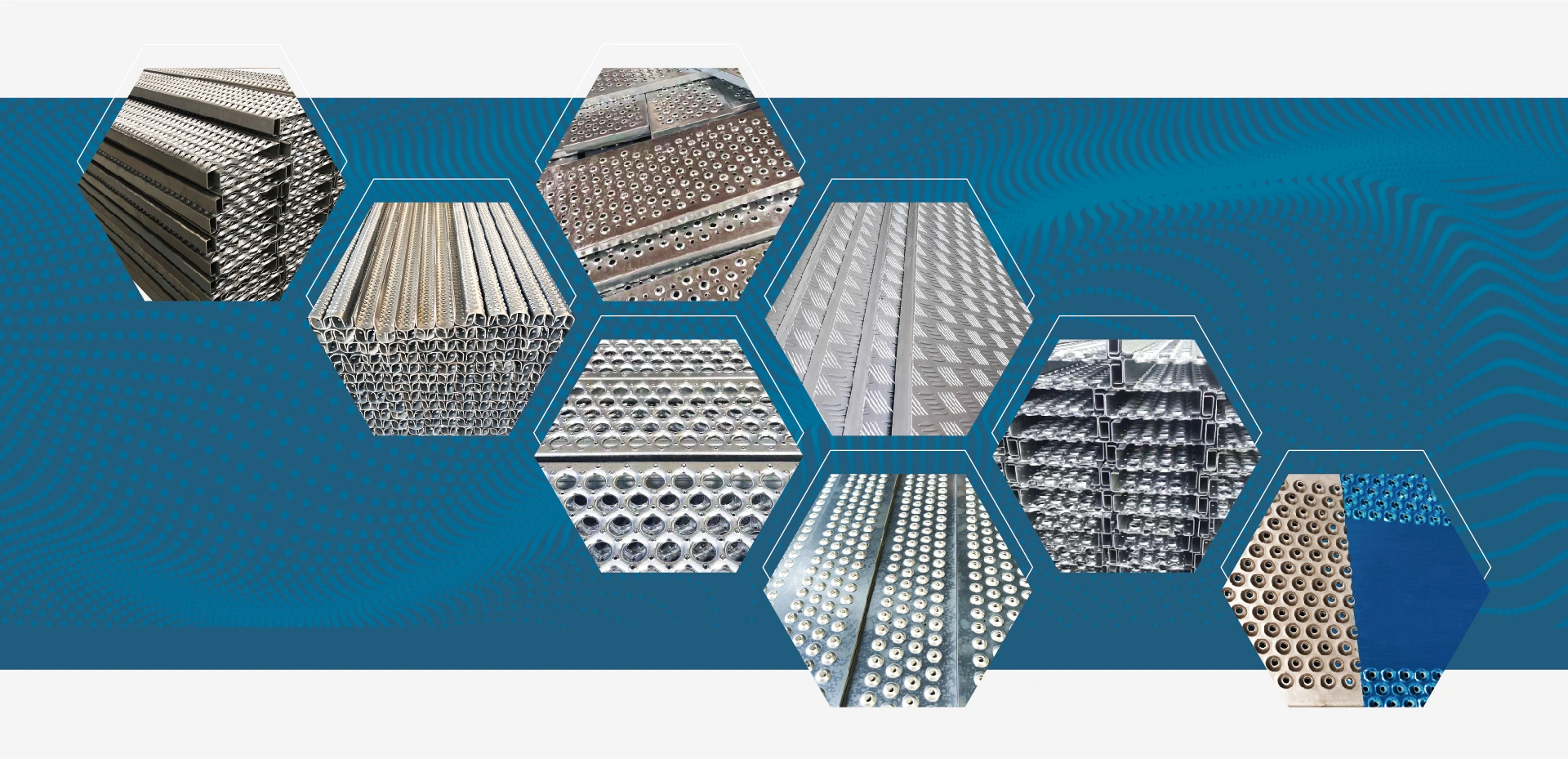

Variety of steel ladder rung

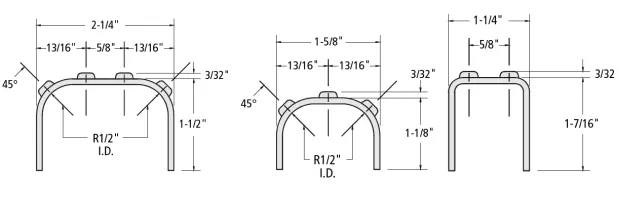

The Drawing of steel ladder rung

The Detailed specification of steel ladder rung

2 Holes ladder rung

Material	Safe concentrated load
	16”span	18”span	20”span	24”span
11ga steel	664	590	531	443
13ga steel	508	451	401	338
.125” aluminum	471	418	377	314
16ga stainless steeel	345	306	276	230

3 Holes ladder rung

Material	Safe concentrated load
	16”span	18”span	20”span	24”span
11ga steel	474	422	379	316
13ga steel	375	334	300	250
.125” aluminum	337	299	263	224
16ga stainless steeel	260	231	208	198

4 Holes ladder rung

Material	Safe concentrated load
	16”span	18”span	20”span	24”span
11ga steel	1138	1012	911	759
13ga steel	862	766	689	574
.125” aluminum	810	720	649	540
16ga stainless steeel	580	516	464	387

Loads are based on static loading, the minimum safety factor=1.67, maximum deflection is less than L/240.

Application showing of steel ladder rung

ladder rungs play a crucial role in enhancing safety in various industrial applications. Whether choosing galvanized ladder rungs for their durability or aluminum ladder rungs for their lightweight and corrosion-resistant properties, the selection depends on the specific needs of the industry and the work environment. A well-designed ladder with the right rungs ensures that workers can confidently access elevated areas, contributing to a safer and more efficient workplace.
